HEAVY DUTY LONG SPAN ROCKY RACKING SYSTEM

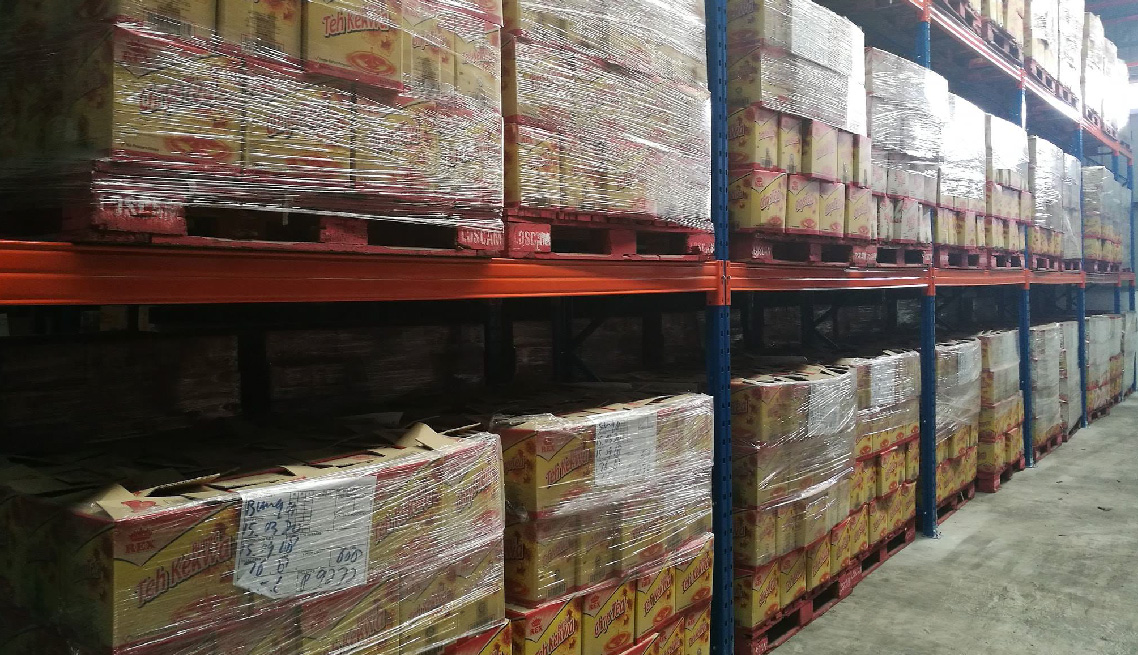

About our MEGA-RACK (75mm) Pallet Racking MEGA-6, MEGA-12, MEGA-18, MEGA-25

  1. MEGA-RACK pallet racking is designed to store pallet cargo. It enables you to make full use of the storage space. With a wide range of optional solutions and components available, we can design special IMH pallet racking according to your requirement.
  2. Our MEGA-RACK pallet racking can be coupled with different specification of pallet and containers.
  3. It can coordinate with all the handling equipment and operational equipment.
  4. Our MEGA-RACK pallet racking is manufactured in accordance with international quality standard ISO9001:2000, as well as international design standard SEMA and FEM.

ADVANTAGES :

  • Considerable use of narrow spaces as well as heights in the warehouse or other facilities that usually remain unused. This would exempt the spaces for the better quantity of storage solutions and would thus increase the operational quality of the warehouses.
  • The above mentioned factor thus reduces the effective cost for all kinds of storage requirements.
  • Heavy-duty shelves are adaptable and adjustable to a variety of loading conditions.
  • Though they are extremely sturdy, heavy duty shelves can be easily reconfigured. They can be seamlessly dismantled and reassembled.

SERVICE DETAILS

About the Upright Column of our IMH Pallet Racking.

  1. The upright column of our MEGA-RACK pallet racking bears the weight of the whole pallet racking system. The beam helps distribute the weight of racking, so that the safety and the overall perfomance can be quaranteed.
  2. Since the upright of our MEGA-RACK pallet racking adopt optimized structure, they have the features of strong bearing capacity, high rigidity and good resistance to torsion.
  3. The lateral holes on upright column can help tarnsfer the load vertically down the upright. through these holes, beams can be mounted into the upright columns. Since the beam is connected rather than wedged, the side loads will not bear down upon upright through the beam connector.
  4. The uprights of our MEGA-RACK pallet racking has a greater strength, rigdity and resistance to lateral impact damage.
